We use our own premium HEAVY DUTY TRAILER PARTS LOYAL Brand Under-Carriage Products for all trailers to guarantee excellence.

Gas Tanker Trailer

Specification:
  1. I Beam -450 mm
  2. Axle – HDTPL (ABS & Non ABS)
  3. Suspension – HDTPL (III – Spring Leaf -90x16x9)
  4. Landing Gear – HDTPL/ Fabricated Manual Pin Type
  5. King Pin – HDTPL Bolted
  6. Mudguards – Fabricated
  7. Wheel Rim – 7.50 x 20 – 12 Nos
  8. Tyres – 12 Nos
  9. Wabco -ABS/ EBS Kit (Optional)
  10. Air Tank -2 Nos
  11. Air Suspension (Optional)
  12. Mono Mechanical Suspension For 54 Ton Passing (Optional)

Triple Axle Flat Bed Trailer

Specification:
  1. I Beam – 450 mm
  2. Axle – HDTPL (ABS & Non ABS)
  3. Suspension – HDTPL (III – Spring Leaf – 90x16x9)
  4. Landing Gear – HDTPL/ Fabricated Manual Pin Type
  5. King Pin – HDTPL Bolted
  6. Mudguards – Fabricated
  7. Wheel Rim – 7.50 x 20 – 12 Nos
  8. Tyres – 12 Nos
  9. Approved by:
  10. CAT
  11. Innovation. Service Excellence
  12. Air Suspension (Optional)
  13. Mono Mechanical Suspension For 54 Ton Passing (Optional)
  14. Bottom Panding Plate 12mm
  15. Center & Side Cross 150mm
  16. Rear & Front Bumper 200mm
  17. Side C Channel 125-150mm
  18. Wabco – ABS/ EBS Kit (Optional)
  19. Air Tank – 2 Nos

Double Axle Flat Bed Trailer

Specification:
  1. I Beam – 400 mm
  2. Axle – HDTPL (ABS & Non ABS)
  3. Suspension – HDTPL (II – Spring Leaf – 90x16x9)
  4. Landing Gear HDTPL/Fabricated Manual Pin Type
  5. King Pin – HDTPL Bolted Mudguards – Fabricated
  6. Wheel Rim -7.50 x 20-12 Nos
  7. Tyres – 12 Nos
  8. Wabco – ABS/EBS Kit (Optional)
  9. Air Tank – 2 Nos
  10. Bottom Pading Plate – 12mm
  11. Center & Side Cross – 175mm
  12. Rear & Front Bumper – 200mm
  13. Side Channel – 125mm

Skeleton Tripple Axle Trailer

Specification:
  1. I Beam – 450 mm
  2. Axle – HDTPL (ABS & Non ABS)
  3. Suspension – HDTPL (III – Spring Leaf – 90x16x8)
  4. Tyres – 12 Nos
  5. Center & Side Cross – 150mm
  6. Wabco – ABS/ EBS Kit (Optional)
  7. Landing Gear – HDTPL/ Fabricated Manual Pin Typе Air Tank – 2 Nos
  8. King Pin – HDTPL Bolted Mudguards – Fabricated
  9. Wheel Rim – 7.50 x 20 – 12 Nos
  10. Air Suspension (Optional
  11. Mono Mechanical Suspension For 54 Ton Passing (Optional)

Skeleton Double Axle Trailer

Specification:
  1. I Beam – 400 mm
  2. Axle – HDTPL (ABS & Non ABS)
  3. Suspension – HDTPL (III – Spring Leaf – 90x16x9)
  4. Landing Gear – HDTPL/ Fabricated Manual Pin Type King Pin – HDTPL Bolted
  5. Mudguards – Fabricated
  6. Wheel Rim – 7.50 x 20 – 12 Nos
  7. Tyres – 12 Nos
  8. Center & Side Cross – 150mm
  9. Side C Channel – 150mm
  10. Rear & Front Bumper 200mm
  11. Bottom Pading Plate 12mm
  12. Wabco – ABS/ EBS Kit (Optional)
  13. Air Tank – 2 Nos
  14. Air Suspension (Optional)

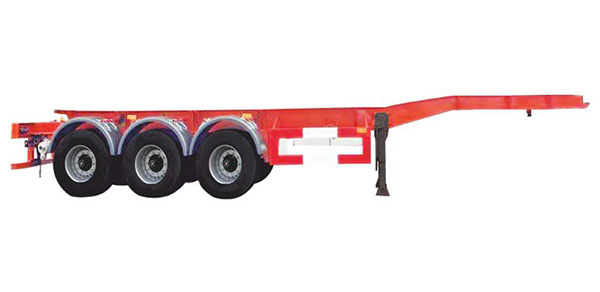

Tripple Axle Semi Trailer

Specification:
  1. I Beam – 450 mm
  2. Axle – HDTPL (ABS & Non ABS)
  3. Suspension – HDTPL (III – Spring Leaf – 90x16x9)
  4. Landing Gear – HDTPL/ Fabricated Manual Pin Type
  5. King Pin – HDTPL Bolted
  6. Mudguards – Fabricated
  7. Wheel Rim – 7.50 x 20-12 Nos
  8. Tyres – 12 Nos Wabco – ABS/ EBS Kit (Optional
  9. Air Tank – 2 Nos
  10. Air Suspension (Optional)
  11. Mono Mechanical Suspension For 54 Ton Passing
  12. (Optional)

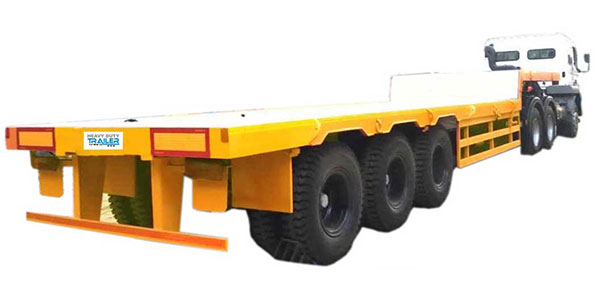

Tripple Axle Semi Low Bed Trailer

Specification:
  1. I Beam – 450 mm
  2. Axle – HDTPL (ABS & Non ABS)
  3. Suspension – HDTPL (III – Spring Leaf – 90x16x9)
  4. Landing Gear – HDTPL/ Fabricated Manual
  5. Pin Type
  6. King Pin – HDTPL Bolted
  7. Mudguards – Fabricated
  8. Wheel Rim – 7.50 x 20-12 Nos
  9. Tyres – 12 Nos
  10. Center & Side Cross – 150mmSide C
  11. Channel – 150mm
  12. Bottom Pading Plate 12mm
  13. Wabco – ABS/ EBS Kit (Optional)
  14. Air Tank – 2 Nos
  15. Air Suspension (Optional)
  16. Mono Mechanical Suspension For 54 Ton Passing (Optional)
  17. Front Wall (Optional)

Tripple Axle Side Wall Trailer

Specification:
  1. I Beam – 450 mm
  2. Axle – HDTPL (ABS & Non ABS)
  3. Suspension – HDTPL (III – Spring Leaf -90x16x9)
  4. Landing Gear – HDTPL/ Fabricated Manual Pin Typе
  5. King Pin – HDTPL Bolted
  6. Mudguards – Fabricated
  7. Wheel Rim – 7.50 x 20 -12 Nos
  8. Tyres – 12 Nos
  9. Box Height 25ft
  10. Center & Side Cross -150mm
  11. Bottom Pading Plate 12mm
  12. Side C Channel – 150mm
  13. Wabco – ABS/ EBS Kit (Optional)
  14. Air Tank – 2 Nos
  15. Air Suspension (Optional)
  16. Mono Mechanical Suspension For 54 Ton Passing (Optional)
Standard

Technical Features Across Models

Axles

HDTPL (Available in ABS & Non-ABS).

Braking

Wabco ABS/EBS Kits (Optional) for enhanced safety.

Suspension

HDTPL III-Spring Leaf (90x16x9) for superior load-bearing.

Components

HDTPL Bolted King Pins and Fabricated Manual Pin Type Landing Gears.
